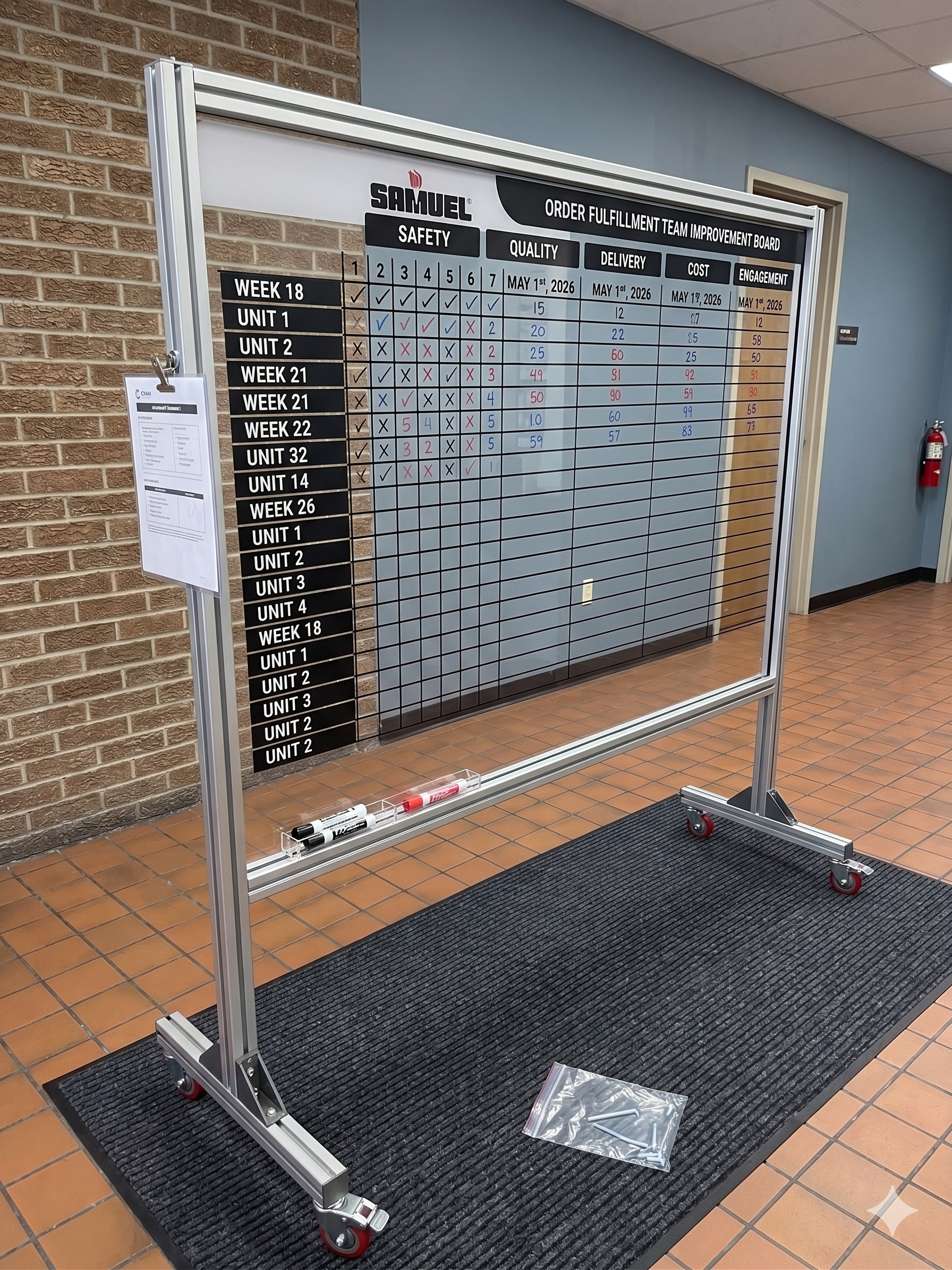

Architectural Series | Transparent See-Through Visual Management Board | Custom Printed Acrylic | Mobile Huddle & KPI Board

The only see-through visual management board available online. CYANvisuals' Architectural Series combines our industrial T-slot aluminum mobile frame with an optically clear acrylic panel and a custom-printed laminated graphic overlay — giving you a fully functional KPI and huddle board that your team can write on, while maintaining complete line-of-sight across the production floor.

No other manufacturer offers this configuration. It is exclusive to CYANvisuals.

How It Works

The board is built on the same heavy-duty T-slot aluminum rolling frame used across our entire visual management line. The panel is 1/4" optically clear cast acrylic — completely transparent. A custom-printed, UV-laminated graphic is applied directly to the panel surface, permanently fixing your headers, section labels, KPI titles, safety icons, and branding in place. The data fields are left clear — your team writes directly on the acrylic surface with dry-erase markers or grease pencils. Wipes clean completely. No ghosting.

The result is a board that functions exactly like a traditional magnetic whiteboard — but one you can see straight through.

Why It Matters on the Production Floor

Traditional whiteboards create a visual wall. In a busy manufacturing cell, a huddle board placed in a team area blocks sight lines to equipment, exits, and people moving through the space. The Architectural Series eliminates that problem entirely. Supervisors can monitor the production line through the board during a huddle. Workers on the other side of the board can still see what's happening in the cell. Safety is maintained without compromising the visual management program.

It also works as a genuine two-sided information display. In double-sided configuration, both faces carry the printed graphic — teams on either side of an aisle can read and update their metrics independently, from their own side, without walking around.

What's Included

• Optically clear 1/4" cast acrylic panel — custom size
• Custom-printed UV-laminated graphic overlay — permanently bonded to panel
• Heavy-duty T-slot aluminum rolling frame with 4 locking industrial casters
• All mounting hardware
• Free custom design — your KPI layout, section headers, safety icons, logo, and colour scheme

Customization — Free on Every Order

Every Architectural Series board is custom-designed at no extra charge. Send us your layout — SQDC, SQDIP, tier meeting format, safety tracking, Kanban, or your own structure — and our design team will build the artwork and send for approval before production. Standard lead time is 4–5 weeks from design approval.

Sizes & Configuration

• 4' × 6' — ideal for team cells, production lines, and standard huddle areas
• 4' × 8' — for larger team areas, multi-department boards, or high information density layouts
• Single-Sided — one printed face, wall-side or aisle-facing placement
• Double-Sided — printed on both faces, for centre-aisle placement where two teams work back to back

Industries & Applications

Automotive manufacturing, food and beverage processing, pharmaceutical production, aerospace, healthcare, and any facility running tiered daily management, Lean, or continuous improvement programs where safety and sight lines are a priority.

Lead time: 4–5 weeks from design approval. Free design consultation included.
