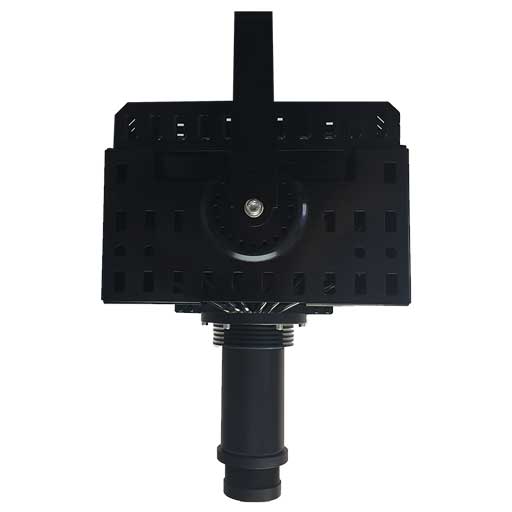

ECO Spot™ Sign Projector - Industrial Grade LED GOBO Projector Rugged Environments [ ES-B150PCE]

The B150PCE is designed for industrial, dusty or wet environments.

 It has no moving parts such as fans or motors. Instead it relies on a huge oversized heat sink that is easy to clean. UL/cUL Certified for industrial and wet environments - certificate number - E4993665

UL/cUL rated for wet environments (2019 models) E4993665Ideal for dusty and wet industrial environments.Long service intervals.LED lamp technology, Ten times more efficient than comparable halogen Projectors.35,000 hours bulb life. LED is field replaceable.Automatically adjusts to a wide line voltage range - 100V-240V/277V, 50Hz-60Hz, 220WTakes std. M-size Glass and Metal Gobos, up to Full Color.Interchangeable Projection Lenses.Passive Cooling - no fans or motors..Unique yoke/stand-foot allows for Standalone or Truss mounting.



• Projector

Order Code:	ES-B150PCE
Power Supply:	100V-240V/277V, 50-60Hz, 220W
Ambient Temp. Range:	-22°F to 140°F (-30°C to 60°C)
Can be used in-/and outdoors	Exterior Version
UL/cUl Certification	UL/cUL rated for wet environments (2019 models) E4993665

• Optical

Lamp:	150W LED, 35,000h rated bulb life
Projection Lens Included:	yes, choose from options below
Available Lenses:	Semi-Narrow: f=200mm/15°, Medium: f=140mm/20°, Semi-Wide: f=115mm/25°, Wide: f=87mm/30°
Effective Luminous Flux:	12,000lm (effective flux 8,900lm)
Color Temperature (Kelvin):	6,000k +/-500k
Dimmable:	Yes, with trimmer

• Lens Range

Bright	- up to 70 ft
Dim	- up to 150 ft
Dark	- up to 300 ft (or more in very dark conditions)

• Dimensions

Gobo Size:	M-Size (OD66mm, ID48mm) Max. thickness: 5mm
Total Length:	21 - 26” (incl. lens)
Height:	13.2”
Width:	14.2”
Weight:	23 lbs

• Package Contents

Power Cord

Test Gobo

Spare Gobo Retaining Ring

Integrated Gobo Mounts

User Manual
