DockRight™ : Laser Line Projector - Paint Free - Long Range (Adjustable Width)

Contact us for quantity pricing.

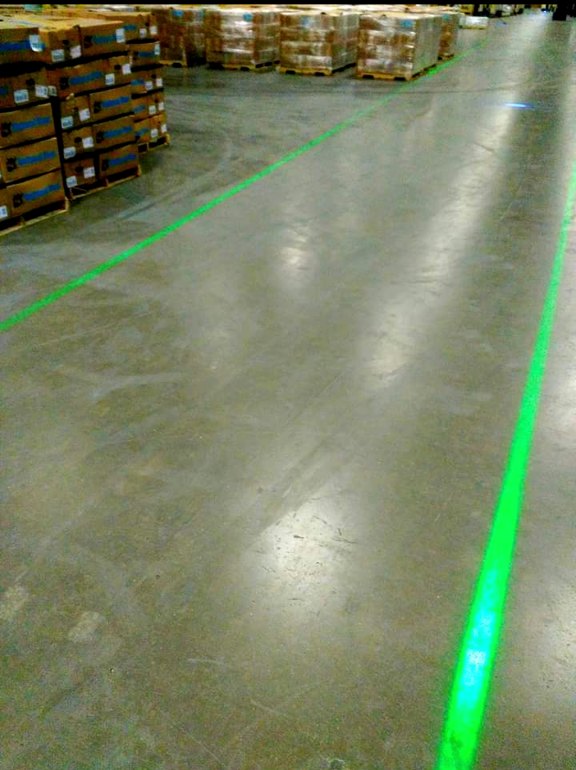

Paint-free, tape-free floor lines. Each DockRight projects one crisp, solid laser line that stays visible where paint and tape wear away, get buried under snow and ice, or wash out under bright lighting. Mount it overhead, aim it, and the line is there. There's no curing, no repainting and no shutting down traffic.

Where it works

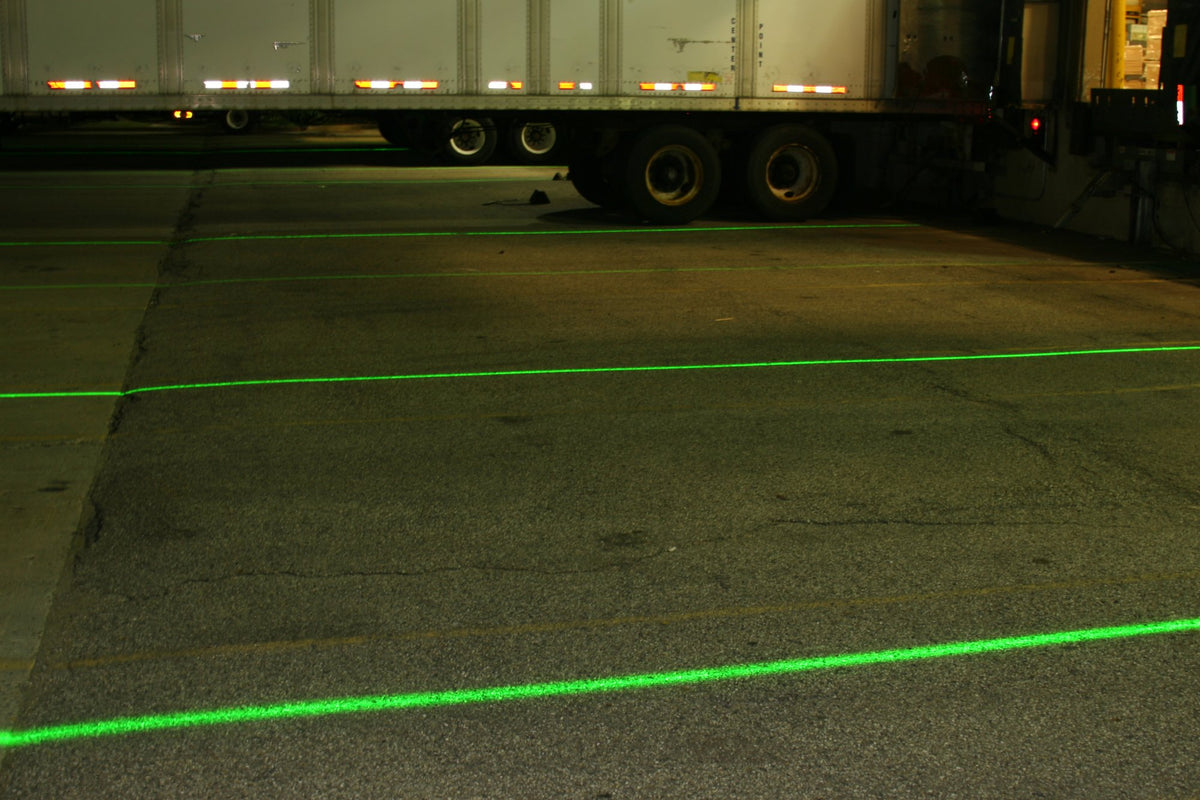

• Truck docking: interior and exterior lane lines that guide drivers into the dock door, day or night

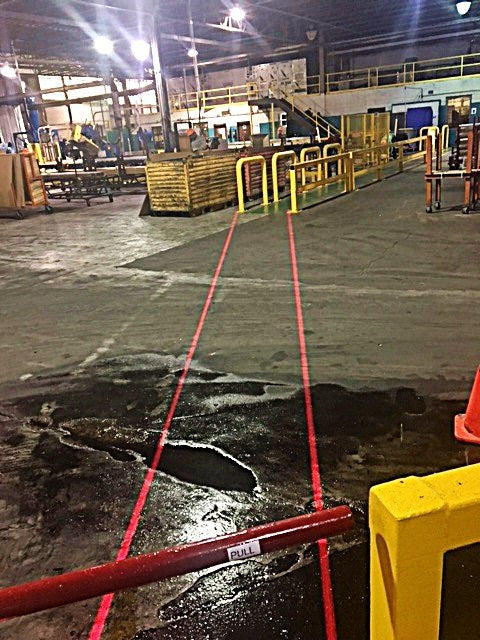

• Pedestrian walkways: single- or double-sided walkway edges (one unit per side)
• Overhead crane safe zones: mark the area under moving cranes
• Off-limits areas: cordon off hazards, restricted zones and equipment swing paths

Key features

• Plug and play on standard 100–240 VAC power
• Line length adjustable with side shutters
• Indoor or outdoor; IP65 sealed against dust and water
• Class 3R laser for industrial use
• Braided steel safety tether included

How many units do I need?

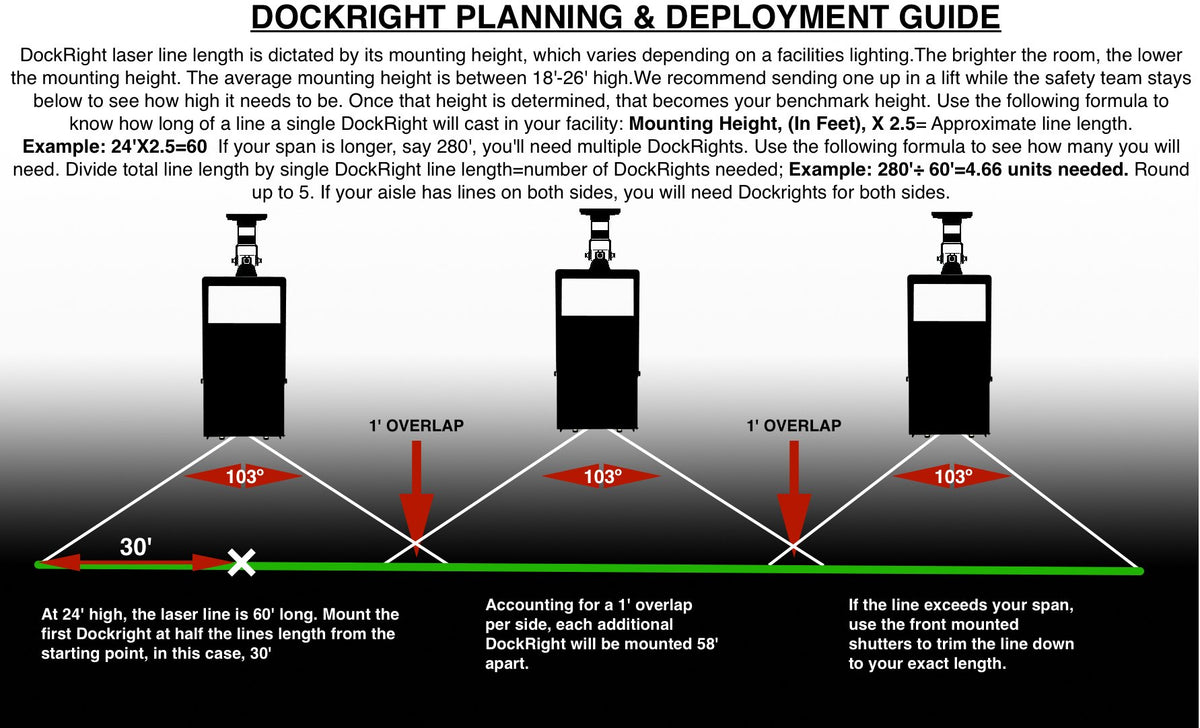

Line length ≈ mounting height × 2.5. For example, a unit at 24 ft projects a line about 60 ft long. Divide each line's length by that figure and round up: a 280 ft walkway ÷ 60 ft = 4.7, so 5 units per side. Mount the first unit half a line-length from the start, then space the rest so the lines overlap about a foot. Send us your mounting heights and line lengths and we'll confirm the count.

Specifications

• Line colours: green, red or blue
• Power: 100–240 VAC, 50/60 Hz
• Fan angle: 90° (vertical downward projection about 103°)
• Line size: about 15 m (49 ft) long and 6 cm (2.4 in) wide at 6 m (20 ft) mounting height
• Laser class: Class 3R
• Protection: IP65, indoor or outdoor
• Operating temperature: −25 °C to 55 °C (−14 °F to 131 °F)
• Operating humidity: 20–90% RH
• Rated lifetime: 14,000 hours
• Net weight: 5.8 kg (12.8 lb)
• Package size: 415 × 360 × 175 mm
• Compliance: IEC/EN 60825-1 and 21 CFR 1040.10 / 1040.11 (Laser Notice No. 50); CE and CE-LVD
• Warranty: 1 year

In the box

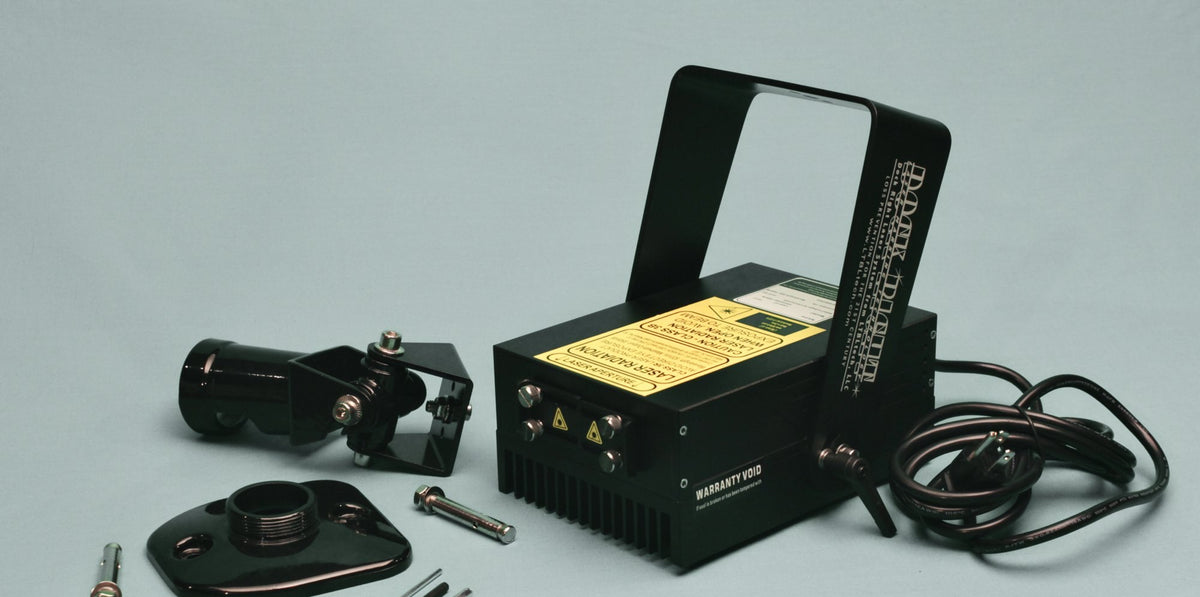

Laser unit, mounting bracket and screws, adjustment wrench and braided steel safety tether.

Need lines that switch colour or turn on and off with a PLC? See the DockRight PLC. For short lines and low ceilings, see the MiniDock.

Installation is by your facility team or contractor. CYANvisuals ships finished units ready to mount.
